Low Cost SS Compact Pressure Transmitter

PX119

New

Low cost stainless steel compact pressure transducer

^£101.56 PX119-100GI

PLACE ORDER

Compact and affordable for OEM applications
Easily configurable, now with expanded options
Reliable outputs with signal conditioning
Durable, stainless steel housing resists corrosion in harsh industrial environments

Pressure Transducers - View related products

Description

Pressure Without the Pain

Ideally suited for material handling, industrial and mobile equipment applications where a small, yet rugged SS body size is desired at a reasonable price point. The body is machined from a single piece of stainless steel to provide added protection for the internal electronics as well as prevent corrosion from most applications. A piezoresistive ceramic sensor along with ASIC signal conditioning provides an excellent thermally compensated output.

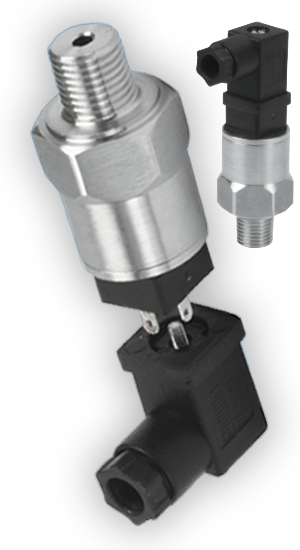

PX119 Low Cost SS Compact Pressure Transmitter

SIMPLE
MULTIPURPOSE
COMPACT

Monitor air brake pressure
Monitor pressure/height in vehicle suspension
Regulate pneumatic door operation

Monitor excessive load
Monitor lift operation
Monitor compact pressure

Great cost: performance ratio
Accuracy: 0.5% BFSL
Large pressure range
15 to 5000 psi
Piezoresistive ceramic diaphragm
Excellent thermally compensated output
Operating temp: -40 to 135°C (32 to 185°F)
Reliable output with signal conditioning
Output: 4 to 20 mA or 0 to 5 VDC
Input: 8 to 30 Vdc
Response time: 1 ms
Rugged form factor
Shock and vibration resistant
10g for <58 psi/20g for >58 psi
Resists corrosion and water
304 SS body
Wetted materials: Ceramic AI₂O₃, NBR

Place Order(Specify Model Number)

Part Number/ Desc.

Qty

Description

4-20mA - CURRENT OUTPUT

Absolute Pressure, 1/4 NPT process connection, mini DIN connector, 4-20 mA output

PX119-015AI

£107.27

Availability: 2 weeks

0 to 15 psia, 0 to 1 bar

PX119-030AI

£107.27

Availability: In Stock

0 to 30 psia, 0 to 2.1 bar

PX119-100AI

£101.56

Availability: 2 weeks

0 to 100 psia, 0 to 6.9 bar

PX119-150AI

£107.27

Availability: 2 weeks

0 to 150 psia, 0 to 10.3 bar

PX119-300AI

£107.27

Availability: 7 weeks

0 to 300 psia, 0 to 21 bar

PX119-600AI

£101.56

Availability: 2 weeks

0 to 600 psia, 0 to 42 bar

PX119-1KAI

£107.27

Availability: 2 weeks

0 to 1000 psia, 0 to 69 bar

PX119-1.5KAI

£107.27

Availability: 2 weeks

0 to 1500 psia, 0 to 103 bar

PX119-3KAI

£107.27

Availability: 2 weeks

0 to 3000 psia, 0 to 207 bar

PX119-5KAI

£107.27

Availability: 2 weeks

0 to 5000 psia, 0 to 345 bar

Gage Pressure, 1/4 NPT process connection, mini DIN connector, 4-20 mA output

PX119-015GI

£101.56

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX119-030GI

£101.56

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX119-100GI

£101.56

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX119-150GI

£101.56

Availability: 11 weeks

0 to 150 psig, 0 to 10.3 bar

PX119-300GI

£107.27

Availability: 5 weeks

0 to 300 psig, 0 to 21 bar

PX119-600GI

£107.27

Availability: 2 weeks

0 to 600 psig, 0 to 42 bar

PX119-1KGI

£107.27

Availability: 2 weeks

0 to 1000 psig, 0 to 69 bar

PX119-1.5KGI

£107.27

Availability: 2 weeks

0 to 1500 psig, 0 to 103 bar

PX119-3KGI

£107.27

Availability: 5 weeks

0 to 3000 psig, 0 to 207 bar

PX119-5KGI

£107.27

Availability: 2 weeks

0 to 5000 psig, 0 to 345 bar

Absolute Pressure, 1/8 NPT process connection, mini DIN connector, 4-20 mA output

PX119A-015AI

£107.27

Availability: 11 weeks

0 to 15 psia, 0 to 1 bar

PX119A-030AI

£107.27

Availability: 11 weeks

0 to 30 psia, 0 to 2.1 bar

PX119A-060AI

£107.27

Availability: 2 weeks

0 to 60 psia, 0 to 4.2 bar

Gauge Pressure, 1/8 NPT process connection, mini DIN connector, 4-20 mA output

PX119A-015GI

£107.27

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX119A-030GI

£107.27

Availability: 5 weeks

0 to 30 psig, 0 to 2.1 bar

PX119A-060GI

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX119A-100GI

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX119A-150GI

£107.27

Availability: 2 weeks

0 to 150 psig, 0 to 10.3 bar

PX119A-200GI

£107.27

Availability: 2 weeks

0 to 200 psig, 0 to 13.8 bar

PX119A-300GI

£107.27

Availability: 11 weeks

0 to 300 psig, 0 to 21 bar

PX119A-500GI

£107.27

Availability: 11 weeks

0 to 500 psig, 0 to 34.5 bar

PX119A-1KGI

£107.27

Availability: 11 weeks

0 to 1000 psig, 0 to 69 bar

PX119A-2KGI

£107.27

Availability: 2 weeks

0 to 2000 psig, 0 to 138 bar

PX119A-3KGI

£107.27

Availability: 2 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/8 NPT process connection, 2m Cable, 4-20 mA output

PX109A-015AI

£107.27

Availability: 11 weeks

0 to 15 psia, 0 to 1 bar

PX109A-030AI

£101.56

Availability: 11 weeks

0 to 30 psia, 0 to 2.1 bar

PX109A-060AI

£107.27

Availability: 11 weeks

0 to 60 psia, 0 to 4.2 bar

Gauge Pressure, 1/8 NPT process connection, 2m cable, 4-20 mA output

PX109A-015GI

£107.27

Availability: 11 weeks

0 to 15 psig, 0 to 1 bar

PX109A-030GI

£107.27

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX109A-060GI

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX109A-100GI

£107.27

Availability: 5 weeks

0 to 100 psig, 0 to 6.9 bar

PX109A-150GI

£107.27

Availability: 2 weeks

0 to 150 psig, 0 to 10.3 bar

PX109A-200GI

£107.27

Availability: 11 weeks

0 to 200 psig, 0 to 13.8 bar

PX109A-300GI

£107.27

Availability: 11 weeks

0 to 300 psig, 0 to 21 bar

PX109A-500GI

£107.27

Availability: 7 weeks

0 to 500 psig, 0 to 34.5 bar

PX109A-1KGI

£107.27

Availability: 2 weeks

0 to 1000 psig, 0 to 69 bar

PX109A-2KGI

£107.27

Availability: 2 weeks

0 to 2000 psig, 0 to 138 bar

PX109A-3KGI

£107.27

Availability: 7 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/8 NPT process connection, M12 Connector, 4-20 mA output

PX159A-015AI

£107.27

Availability: 11 weeks

0 to 15 psia, 0 to 1 bar

PX159A-030AI

£107.27

Availability: 11 weeks

0 to 30 psia, 0 to 2.1 bar

PX159A-060AI

£107.27

Availability: 11 weeks

0 to 60 psia, 0 to 4.2 bar

Gauge Pressure, 1/8 NPT process connection, M12 Connector, 4-20 mA output

PX159A-015GI

£107.27

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX159A-030GI

£107.27

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX159A-060GI

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX159A-100GI

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX159A-150GI

£107.27

Availability: 2 weeks

0 to 150 psig, 0 to 10.3 bar

PX159A-200GI

£107.27

Availability: 2 weeks

0 to 200 psig, 0 to 13.8 bar

PX159A-300GI

£107.27

Availability: 11 weeks

0 to 300 psig, 0 to 21 bar

PX159A-500GI

£107.27

Availability: 2 weeks

0 to 500 psig, 0 to 34.5 bar

PX159A-1KGI

£107.27

Availability: 2 weeks

0 to 1000 psig, 0 to 69 bar

PX159A-2KGI

£107.27

Availability: 5 weeks

0 to 2000 psig, 0 to 138 bar

PX159A-3KGI

£107.27

Availability: 2 weeks

0 to 3000 psig, 0 to 207 bar

0-5VDC - VOLTAGE OUTPUT

Absolute Pressure, 1/4 NPT process connection, 2m Cable, 0-5VDC output

PX109-015A5V

£101.56

Availability: 11 weeks

0 to 15 psia, 0 to 1 bar

PX109-030A5V

£107.27

Availability: 11 weeks

0 to 30 psia, 0 to 2.1 bar

PX109-060A5V

£107.27

Availability: 5 weeks

0 to 60 psia, 0 to 4.2 bar

PX109-100A5V

£107.27

Availability: 11 weeks

0 to 100 psia, 0 to 6.9 bar

Gauge Pressure, 1/4 NPT process connection, 2m Cable, 0-5VDC output

PX109-015G5V

£107.27

Availability: 11 weeks

0 to 15 psig, 0 to 1 bar

PX109-030G5V

£107.27

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX109-060G5V

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX109-100G5V

£107.27

Availability: 11 weeks

0 to 100 psig, 0 to 6.9 bar

PX109-150G5V

Consult Sales

Availability:

0 to 150 psig, 0 to 10.3 bar

PX109-200G5V

£107.27

Availability: 11 weeks

0 to 200 psig, 0 to 13.8 bar

PX109-300G5V

£107.27

Availability: 11 weeks

0 to 300 psig, 0 to 21 bar

PX109-500G5V

£107.27

Availability: 11 weeks

0 to 500 psig, 0 to 34.5 bar

PX109-1KG5V

£107.27

Availability: 11 weeks

0 to 1000 psig, 0 to 69 bar

PX109-2KG5V

£107.27

Availability: 7 weeks

0 to 2000 psig, 0 to 138 bar

PX109-3KG5V

£107.27

Availability: 11 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/4 NPT process connection, M12 Connector, 0-5VDC output

PX159-015A5V

£107.27

Availability: 11 weeks

0 to 15 psia, 0 to 1 bar

PX159-030A5V

£107.27

Availability: 5 weeks

0 to 30 psia, 0 to 2.1 bar

PX159-060A5V

£107.27

Availability: 11 weeks

0 to 60 psia, 0 to 4.2 bar

PX159-100A5V

£107.27

Availability: 2 weeks

0 to 100 psia, 0 to 6.9 bar

Gauge Pressure, 1/4 NPT process connection, M12 Connector, 0-5VDC output

PX159-015G5V

£107.27

Availability: 11 weeks

0 to 15 psig, 0 to 1 bar

PX159-030G5V

£107.27

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX159-060G5V

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX159-100G5V

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX159-200G5V

£107.27

Availability: 11 weeks

0 to 200 psig, 0 to 13.8 bar

PX159-150G5V

Consult Sales

Availability:

0 to 150 psig, 0 to 10.3 bar

PX159-300G5V

£107.27

Availability: 11 weeks

0 to 300 psig, 0 to 21 bar

PX159-500G5V

£107.27

Availability: 11 weeks

0 to 500 psig, 0 to 34.5 bar

PX159-1KG5V

£107.27

Availability: 11 weeks

0 to 1000 psig, 0 to 69 bar

PX159-2KG5V

£107.27

Availability: 2 weeks

0 to 2000 psig, 0 to 138 bar

PX159-3KG5V

£107.27

Availability: 11 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/8 NPT process connection, 2m Cable, 0-5VDC output

PX109A-015A5V

£107.27

Availability: 2 weeks

0 to 15 psia, 0 to 1 bar

PX109A-030A5V

£107.27

Availability: 11 weeks

0 to 30 psia, 0 to 2.1 bar

PX109A-060A5V

£101.56

Availability: 2 weeks

0 to 60 psia, 0 to 4.2 bar

PX109A-100A5V

£107.27

Availability: 11 weeks

0 to 100 psia, 0 to 6.9 bar

Gauge Pressure, 1/8 NPT process connection, 2m Cable, 0-5VDC output

PX109A-015G5V

£107.27

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX109A-030G5V

£107.27

Availability: 2 weeks

0 to 30 psig, 0 to 2.1 bar

PX109A-060G5V

£107.27

Availability: 2 weeks

0 to 60 psig, 0 to 4.2 bar

PX109A-100G5V

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX109A-150G5V

Consult Sales

Availability:

0 to 150 psig, 0 to 10.3 bar

PX109A-200G5V

£107.27

Availability: 2 weeks

0 to 200 psig, 0 to 13.8 bar

PX109A-300G5V

£107.27

Availability: 2 weeks

0 to 300 psig, 0 to 21 bar

PX109A-500G5V

£107.27

Availability: 2 weeks

0 to 500 psig, 0 to 34.5 bar

PX109A-1KG5V

£107.27

Availability: 11 weeks

0 to 1000 psig, 0 to 69 bar

PX109A-2KG5V

£107.27

Availability: 11 weeks

0 to 2000 psig, 0 to 138 bar

PX109A-3KG5V

£107.27

Availability: 11 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/8 NPT process connection, mini DIN connector, 0-5VDC output

PX119A-015A5V

£107.27

Availability: 2 weeks

0 to 15 psia, 0 to 1 bar

PX119A-030A5V

£107.27

Availability: 2 weeks

0 to 30 psia, 0 to 2.1 bar

PX119A-060A5V

£107.27

Availability: 11 weeks

0 to 60 psia, 0 to 4.2 bar

PX119A-100A5V

£107.27

Availability: 2 weeks

0 to 100 psia, 0 to 6.9 bar

Gauge Pressure, 1/8 NPT process connection, mini DIN connector, 0-5VDC output

PX119A-015G5V

£107.27

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX119A-030G5V

£107.27

Availability: 11 weeks

0 to 30 psig, 0 to 2.1 bar

PX119A-060G5V

£107.27

Availability: 11 weeks

0 to 60 psig, 0 to 4.2 bar

PX119A-100G5V

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX119A-150G5V

Consult Sales

Availability:

0 to 150 psig, 0 to 10.3 bar

PX119A-200G5V

£107.27

Availability: 11 weeks

0 to 200 psig, 0 to 13.8 bar

PX119A-300G5V

£107.27

Availability: 2 weeks

0 to 300 psig, 0 to 21 bar

PX119A-500G5V

£107.27

Availability: 11 weeks

0 to 500 psig, 0 to 34.5 bar

PX119A-1KG5V

£107.27

Availability: 2 weeks

0 to 1000 psig, 0 to 69 bar

PX119A-2KG5V

£107.27

Availability: 2 weeks

0 to 2000 psig, 0 to 138 bar

PX119A-3KG5V

£107.27

Availability: 11 weeks

0 to 3000 psig, 0 to 207 bar

Absolute Pressure, 1/8 NPT process connection, M12 connector, 0-5VDC output

PX159A-015A5V

£107.27

Availability: 2 weeks

0 to 15 psia, 0 to 1 bar

PX159A-030A5V

£107.27

Availability: 2 weeks

0 to 30 psia, 0 to 2.1 bar

PX159A-060A5V

£107.27

Availability: 2 weeks

0 to 60 psia, 0 to 4.2 bar

PX159A-100A5V

£107.27

Availability: 2 weeks

0 to 100 psia, 0 to 6.9 bar

Gauge Pressure, 1/8 NPT process connection, M12 connector, 0-5VDC output

PX159A-015G5V

£107.27

Availability: 2 weeks

0 to 15 psig, 0 to 1 bar

PX159A-030G5V

£107.27

Availability: 2 weeks

0 to 30 psig, 0 to 2.1 bar

PX159A-060G5V

£107.27

Availability: 7 weeks

0 to 60 psig, 0 to 4.2 bar

PX159A-100G5V

£107.27

Availability: 2 weeks

0 to 100 psig, 0 to 6.9 bar

PX159A-150G5V

Consult Sales

Availability:

0 to 150 psig, 0 to 10.3 bar

PX159A-200G5V

£107.27

Availability: 7 weeks

0 to 200 psig, 0 to 13.8 bar

PX159A-300G5V

£107.27

Availability: 2 weeks

0 to 300 psig, 0 to 21 bar

PX159A-500G5V

£107.27

Availability: 2 weeks

0 to 500 psig, 0 to 34.5 bar

PX159A-1KG5V

£107.27

Availability: 2 weeks

0 to 1000 psig, 0 to 69 bar

PX159A-2KG5V

£107.27

Availability: 11 weeks

0 to 2000 psig, 0 to 138 bar

PX159A-3KG5V

£107.27

Availability: 2 weeks

0 to 3000 psig, 0 to 207 bar

Accessories

CA-319-4PC24-010

£76.53

Availability: 8 weeks

10 ft cable for PX119 >100 psig and all absolute ranges, terminated in a dry location or sealed to prevent water from getting into the cable/sensor*

CA-319-4PC24-010-WP

£110.03

Availability: 8 weeks

10 ft Vented cable used for PX119 <=100 psig, terminated in a clean dry area that is open to atmosphere for correct operation*

DP8PT

£270.94

Availability: In Stock

PLATINUM™ Series 1/8 DIN 4-digit single display process meter, scalable and supplies excitation to PX119.

CX5300

£17.15

Availability: 4 weeks

Extra Mating Connector (supplied with 1)

† All amounts shown in EUR, GBP, or USD
Note: Comes with mating 20mm DIN Connector
