Low Cost D-Type Multiway Thermocouple Connectors and Contacts

SM Series

Multiway Thermocouple Connectors | SM Series

Multiway Thermocouple Connectors

£21.47 SMTC-9MF

PLACE ORDER
  • Multiway thermocouple connectores with 9, 15, 25, 37 or 50 Pin
  • -55 to 105°C Operating Temperature Range
  • Connector Bodies Sold in packs of 5 pairs
  • Backshells Sold in Packs of 5
  • Connector Pins and Sockets Sold in Packs of 100
  • Alloys for Types K, T, J or E Thermocouples
  • Uncompensated Pins and Sockets Also Available
Thermocouple Connectors and Panel Systems - View related products

Description

These precision thermocouple connectors are sold in packs of five pairs, each package consisting of 5 male connector bodies and 5 female connector bodies. Connectors are available in 9, 15, 25, 37 and 50-way configurations. Backshells, pins and sockets are sold seperately.

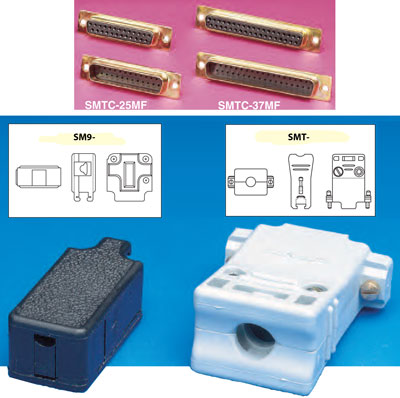

OMEGA's exclusive crimp-style thermocouple alloy pins and sockets set a new industry standard for low cost and high performance. These contacts are available in a number of thermocouple alloys including Chromel, Alumel, gold-plated Iron, Constantan and Copper. In addition, uncompensated pins and sockets are available from stock. All thermocouple contacts are colour-coded for easy identification, and are sold in convenient packs of 100 (four strips of 25). All pins and sockets can be easily wired using OMEGA thermocouple wire in either solid or stranded construction, 0.5 or 0.8 mm diameter. Stranded wire is recommended so that electrical connections will have higher reliability.		   SMTC Series thermocouple Connector Bodies and Backshells


Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/ Desc.
Qty
Description
Thermocouple connector Bodies. Pack of 5 male and 5 female
Click to expand/minimize a list of what others bought with theSMTC-50MF
SMTC-50MF
£77.37
Availability: In Stock

50 way connector bodies (5 pairs)
Click to expand/minimize a list of what others bought with theSMTC-9MF
SMTC-9MF
£21.47
Availability: 2 weeks

9 way connector bodies (5 pairs)
Click to expand/minimize a list of what others bought with theSMTC-15MF
SMTC-15MF
£26.48
Availability: In Stock

15 way connector bodies (5 pairs)
Click to expand/minimize a list of what others bought with theSMTC-25MF
SMTC-25MF
£28.92
Availability: 2 weeks

25 way connector bodies (5 pairs)
Click to expand/minimize a list of what others bought with theSMTC-37MF
SMTC-37MF
£47.18
Availability: In Stock

37 way connector bodies (5 pairs)
Pins and Sockets

SMTC-ON-P
£101.29
Availability: 2 weeks

Omega-N Type N- thermoucouple pins, Pack of 100

SMTC-ON-S
£101.29
Availability: 2 weeks

Omega-N Type N- thermoucouple sockets, Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-OP-P
SMTC-OP-P
£101.29
Availability: 5 weeks

Omega-P Type N+ thermoucouple pins, Pack of 100

SMTC-OP-S
£101.29
Availability: 2 weeks

Omega-P Type N+ thermoucouple sockets, Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CH-P
SMTC-CH-P
£83.09
Availability: In Stock

Chromel thermocouple pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CH-S
SMTC-CH-S
£83.09
Availability: In Stock

Chromel thermocouple sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-AL-P
SMTC-AL-P
£83.09
Availability: In Stock

Alumel thermocouple pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-AL-S
SMTC-AL-S
£83.09
Availability: In Stock

Alumel thermocouple sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CU-P
SMTC-CU-P
£83.09
Availability: In Stock

Copper thermocouple pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CU-S
SMTC-CU-S
£83.10
Availability: In Stock

Copper thermocouple sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CO-P
SMTC-CO-P
£83.09
Availability: In Stock

Constantan thermocouple pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-CO-S
SMTC-CO-S
£83.09
Availability: In Stock

Constantan thermocouple sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-IR-P
SMTC-IR-P
£83.09
Availability: In Stock

Iron thermocouple pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-IR-S
SMTC-IR-S
£83.09
Availability: 2 weeks

Iron thermocouple sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-BR-P
SMTC-BR-P
£64.90
Availability: In Stock

Gold-plated brass uncompensated pins. Pack of 100
Click to expand/minimize a list of what others bought with theSMTC-PBRZ-S
SMTC-PBRZ-S
£64.90
Availability: 5 weeks

Gold-plated phosphorus bronze uncompensated sockets. Pack of 100
Click to expand/minimize a list of what others bought with theSM-CTHD
SM-CTHD
£262.70
Availability: 2 weeks

Heavy duty crimping tool
Click to expand/minimize a list of what others bought with theSM-CTE
SM-CTE
£191.13
Availability: 5 weeks

Economical crimping tool

SM-EX
£6.85
Availability: In Stock

Insertion/extraction tool
Backshells
Click to expand/minimize a list of what others bought with theSM4-9
SM4-9
£19.28
Availability: 2 weeks

Backshell, 45/straight, 9 way connectors, pack of 5

SM4-15
£23.44
Availability: 2 weeks

Backshell, 45/straight, 15 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSM4-25
SM4-25
£23.44
Availability: 8 weeks

Backshell, 45/straight, 25 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSM4-37
SM4-37
£41.80
Availability: 2 weeks

Backshell, 45/straight, 37 way connectors, pack of 5

SM4-50
£34.92
Availability: 2 weeks

Backshell, 45/straight, 50 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSM9-9
SM9-9
£26.08
Availability: 2 weeks

Backshell, 90/straight, 9 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSM9-15
SM9-15
£34.29
Availability: 2 weeks

Backshell, 90/straight, 15 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSM9-25
SM9-25
£17.38
Availability: 2 weeks

Backshell, 90/straight, 25 way connectors, pack of 5
Click to expand/minimize a list of what others bought with theSMT-15
SMT-15
£26.30
Availability: 2 weeks

Backshell with screw clamps for 15 way connectors. Pack of 5
Click to expand/minimize a list of what others bought with theSMT-25S
SMT-25S
£29.17
Availability: 2 weeks

Backshell with screw clamps for 25 way connectors. Max. cable dia. 8.5mm. Pack of 5
Click to expand/minimize a list of what others bought with theSMT-25L
SMT-25L
£32.45
Availability: 2 weeks

Backshell with screw clamps for 25 way connectors. Max. cable dia. 11.7 mm. Pack of 5
Click to expand/minimize a list of what others bought with theSMT-50
SMT-50
£34.92
Availability: 2 weeks

Backshell with screw clamps for 50 way connectors. Pack of 5
Click to expand/minimize a list of what others bought with theSMMR
SMMR
£14.85
Availability: 2 weeks

Male screw retainer set, 20 sets/pkg.

SMFR-EU
£4.02
Availability: 6 weeks

Female screwlock set, 5 sets/pkg.
† All amounts shown in EUR, GBP, or USD
 Ordering Example: (1) SMTC-15MF Pack of 5 pairs of 15 way connector bodies, £26.48  plus (1) SMFR Female screw lock set, £14.85  plus (1) SM-CTE Crimp tool, £191.13  plus (1) SM-EX Insertion and extraction tool, £6.85  plus (1) SMTC-CH-P Pack of 100 Chromel thermocouple pins, £83.09  plus (1) SMTC-CH-S Pack of 100 Chromel thermocouple sockets, £83.09  plus (1) SMTC-AL-P Pack of 100 Alumel thermocouple pins, £83.09  plus (1) SMTC-AL-S Pack of 100 Alumel thermocouple sockets, £83.09  plus (1) SMT-15 Pack of 5 backshells with screw clamps for 15 way connectors, £26.30, £26.48 + 14.85 + 191.13 + 6.85 + 83.09 + 83.09 + 83.09 + 83.09 + 26.30 = £597.97
