Wireless Monitoring System - Low Power Receivers

ZW-REC Series

Wireless Receivers - Low Power | ZW-REC Series

Wireless Receivers - Low Power

£352.86 ZW-REC

PLACE ORDER
CE
  • Built-In Web Server with SSL Encryption
  • Supports Up to 128 End Devices
  • Compatible with HTML5 and Mobile
  • Log data with Omega Enterprise Gateway (OEG)
Wireless Sensors, Transmitters, Receivers, Meters & Controllers - View related products

Description

High-performance, low power consumption OMEGA™ ZW-REC wireless receiver is designed to communicate up to 1000m* (3280') outdoor and around 100m* (328') indoor to various wireless sensors/transmitters. It connects directly to an Ethernet network to serve active web pages and display the data. This built-in web server supports encryption to protect the sensitive data. Email and Text alarms can be sent using OMEGA Dashboard with the receiver. Wirelessly updating firmware for compatible devices is another key feature.

You can monitor and record a range of remote sensors, including Thermocouple, RTD, infrared, Ambient Temperature, Relative Humidity and Barometric Pressure over an Ethernet network with no special software — just your web browser. OMEGA offers the complete wireless system solution supporting a wide range of application requirements in various industries, like Aerospace, Food Processing, Laboratory Research.

* Without obstruction or interference.

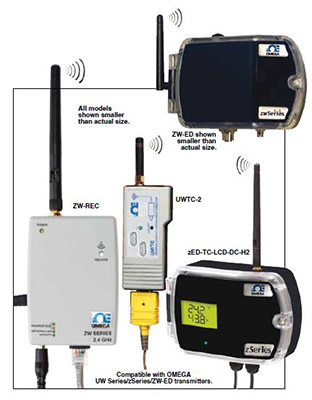

Compatible Wireless Transmitters
ZW Series (ZW-ED): Up to 128 End Devices
UW Series (UWTC, UWRTD, UWIR, UWRH, UWPH): Up to 127 End Devices

Environmental: 0 to 70°C (32 to 158°F), 90% RH non-condensing

Agency Approval: ECCN 5A992; EMC 2014/30/EU; LVD 2014/35/EU; RED 2014/53/EU; FCC ID TY0JN5168M5
Note: Because of transmission frequency regulations, the ZW series products may only be used in the United States, Canada, Europe, China, Japan, Korea, and Brazil.

A Complete Wireless System Requires At Least:
 Case 1: One ZW End Device (ZW-ED), One Digital Probe (zTPx-P, ZTHPx-P or zBTx-P) and One ZW Receiver (ZW-REC).
Example: 3 ZW-ED, 3 zTP1-P and 1 ZW-REC for a 3 zone wireless temperature measurement system

Case 2: One UW Series End Device (UWTC-x, UWRTD-x, UWIR-x, UWRH-x, UWPH-x) and One ZW Receiver (ZW-REC).
Example: UWTC-2 and ZW-REC for a complete wireless thermocouple system



Learn More

Read about the ZW-REC in different applications:
App Note 1 - ZW Wireless Device Client Connection Setup
App Note 2 - ZW-REC Connecting with UW Series Transmitter Instruction
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/ Desc.
Qty
Description
Wireless Coordinators (Receivers)
Click to expand/minimize a list of what others bought with theZW-REC
ZW-REC
£352.86
Availability: In Stock

Wireless receiver
Wireless End Devices (Transmitters) - ZW Series (Need a Digital, Calibrated or Smart Probe)
Click to expand/minimize a list of what others bought with theZW-ED
ZW-ED
Consult Sales
Availability:


Wireless transmitter
Click to expand/minimize a list of what others bought with theZW-ED-LCD
ZW-ED-LCD
£332.42
Availability: 2 weeks

Wireless transmitter with LCD display
Wireless End Devices (Transmitters) - UWSeries (T/C, RTD or Probe Included)
Click to expand/minimize a list of what others bought with theUWTC-2
UWTC-2
£273.43
Availability: In Stock

Wireless thermocouple trasmitter
Click to expand/minimize a list of what others bought with theUWTC-2A-NEMA
UWTC-2A-NEMA
£426.12
Availability: 8 weeks

Wireless Thermocouple Transmitter with NEMA Enclosure
Click to expand/minimize a list of what others bought with theUWPH-2-NEMA
UWPH-2-NEMA
Consult Sales
Availability:


Wireless pH/temperature transmitter
Click to expand/minimize a list of what others bought with theUWPH-2A-NEMA-M12
UWPH-2A-NEMA-M12
£557.84
Availability: 8 weeks

Wireless pH/temperature transmitter with NEMA enclosure
Digital Probes
Click to expand/minimize a list of what others bought with thezTP1-P
zTP1-P
£70.29
Availability: 2 weeks

Digital Stick temperature probe, M12 connector

zTP2-P
£70.29
Availability: 8 weeks

Digital Lug mount temperature probe, M12 connector
Click to expand/minimize a list of what others bought with thezTHP-P
zTHP-P
£126.87
Availability: 2 weeks

Digital Industrial temperature and humidity probe, M12 connector

zTHP2-P
Consult Sales
Availability:


Compact Digital industrial temperature and humidity probe, M12 connector

zBTP-P
£132.30
Availability: 2 weeks

Digital Industrial temperature and barometric pressure probe, M12 connector
Click to expand/minimize a list of what others bought with thezBTHP-P
zBTHP-P
Consult Sales
Availability:


Digital Industrial temperature, humidity and barometric pressure probe, M12 connector
Calibrated Probes

zTP1-P-CAL-3-T
Consult Sales
Availability:


Replacement External Stick Probe with Temperature Sensor, cable 3m (10 ft) NIST Traceable Calibration Certificate. Three (3) Temperature Points

zTP2-P-CAL-3-T
Consult Sales
Availability:


Replacement External Lug Mount Probe with Temperature Sensor, cable 3m (10 ft) NIST Traceable Calibration Certificate. Three (3) Temperature Pointsof 25°C

zBTP-P-CAL-3-P
£230.92
Availability: 14 weeks

Replacement External Industrial Probe with Barometric Pressure and Temperature Sensor, cable 3m (10 ft) with NIST Traceable Calibration Certificate. Three (3) Barometric Pressure Points, Temperature 25°C

zTHP-P-CAL-3-HU
Consult Sales
Availability:


Replacement External Industrial Probe with Temperature and Humidity Sensor, cable 3m (10 ft) with NIST Traceable Calibration Certificate. Three (3) Humidity Points of 25%, 50%, 75%, one temperature 25°C

zTHP2-P-CAL-3-HU
£311.03
Availability: 14 weeks

Replacement External Industrial Probe with Temperature and Humidity Sensor, short probe and M12 connection with NIST Traceable Calibration Certificate. Three (3) Humidity Points of 25%, 50%, 75%, one temperature 25°C

zBTHP-P-CAL-3-HU-P-T
Consult Sales
Availability:


Replacement External Industrial Probe with Barometric Pressure and Temperature Sensor, cable 3m (10 ft) with NIST Traceable Calibration Certificate. Three (3) humidity, barometric pressure, and temperature points
Smart Probes

BT-SMP
£136.35
Availability: 6 weeks

Smart Probe, Barometric/Temp, M12 Connector

TH-SMP
£143.27
Availability: 6 weeks

Smart Probe, Temp/RH, M12 Connector

BTH-SMP
£179.05
Availability: 8 weeks

Smart Probe, Baro/Temp/RH, M12 Connector
Accessory

DM12CAB-8-1-RA
£30.43
Availability: 2 weeks

1m (3.3') cable dual M12-8 connector, right angle terminator

DM12CAB-8-3-RA
£41.26
Availability: 2 weeks

3m (9.8') cable dual M12-8 connector, right angle terminator

DM12CAB-8-5-RA
£49.76
Availability: 8 weeks

5m (16.4') cable dual M12-8 connector, right angle terminator

DM12CAB-8-1
£33.17
Availability: 2 weeks

1m (3.3') cable dual M12-8 connector

DM12CAB-8-3
£37.85
Availability: 8 weeks

3m (9.8') cable dual M12-8 connector

DM12CAB-8-5
£49.76
Availability: 3 weeks

5m (16.4') cable dual M12-8 connector
† All amounts shown in EUR, GBP, or USD
 Note: * For UW Series transmitter ordering information, please go to UWTC/RTD Series for details.

Product Manuals:

Download ZW-REC Receiver Full Manual
Download ZW-REC Receiver Quick Start Manual
